NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products, marble, granite, vitrified polished tile, pottery brick and porcelain, plastic, paper, hardware industries, etc. for gloss measurement and gloss data transmission.
|

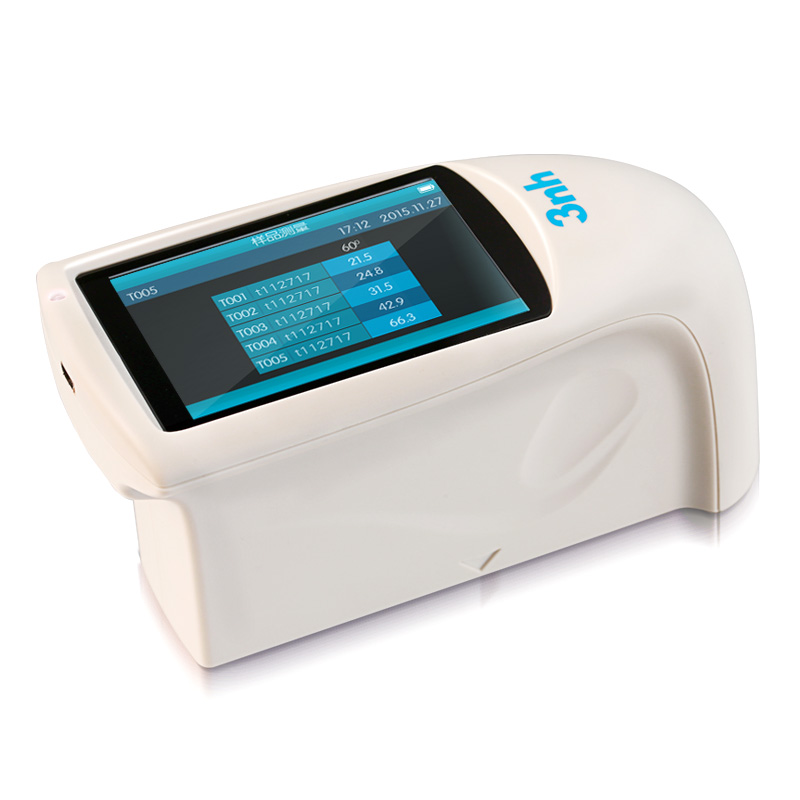

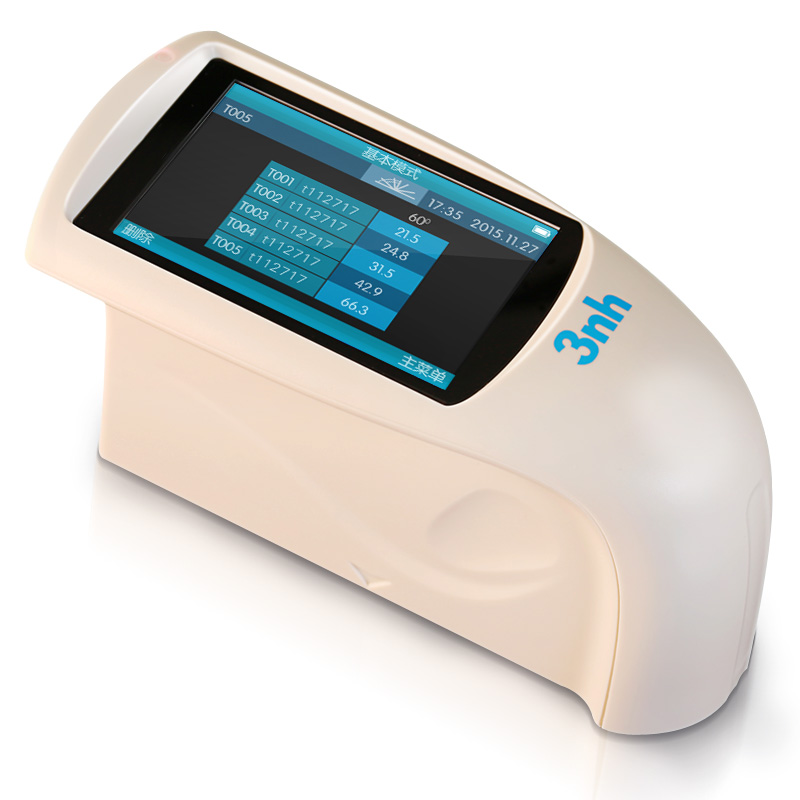

NHG60 60° Precise Gloss Meter
|
|
|
Model
|
NHG60
|
|
Measure Angle
|
60°
Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457 |
|
Measuring Area (mm)
|
9X15
|
|
Measurement Range
|
0~1000GU
|
|
Division Value
|
0.1GU
|
|
Measurement Range
Repeatability Reproducibility |
0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
|
Measurement Standard
|
Conform with JJG696 first class gloss meter working requirement
|
|
Chromaticity Corresponding
|
Corresponding with CIE 1931(2°) under CIE C light source
|
|
Errors
|
±1.2 , ± 1.2%
|
|
Measuring Time
|
0.5s
|
|
Dimension
|
L*W*H : 160mm*75mm*90mm
|
|
Weight
|
350g
|
|
Language
|
Chinese/English
|
|
Battery
|
3200mAh Li-ion Battery, >10000 times(within 8 hours)
|
|
Viewing Screen
|
TFT 3.5 inch, capacitive touch screen
|
|
Interface
|
USB/RS-232
|
|
Data Save
|
Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
|
|
Software
|
GQC6 Quality Control Software with QC report printing functions and more extended functions.
|
|
Operation Temperature
|
0~40℃（32~104°F）
|
|
Storage Temperature
|
-20~50℃（-4~122°F）
|
|
Humidity
|
<85% relative humidity, no condensation
|
|
Standard Accessories
|
Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
|
|
Optional Accessories
|
Miniature Printer
|
|
Note
|
The specifications are subject to change without notice.
|
