Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF,TL83 six light sources
Weight: 28Kg
Dimensions(WxDxH): 710x530x570 mm

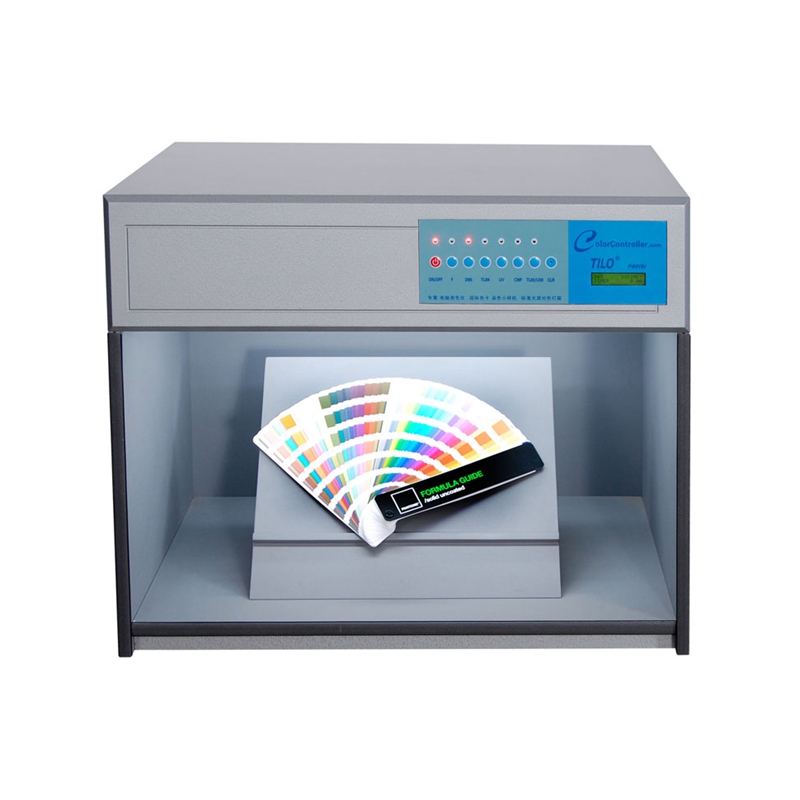

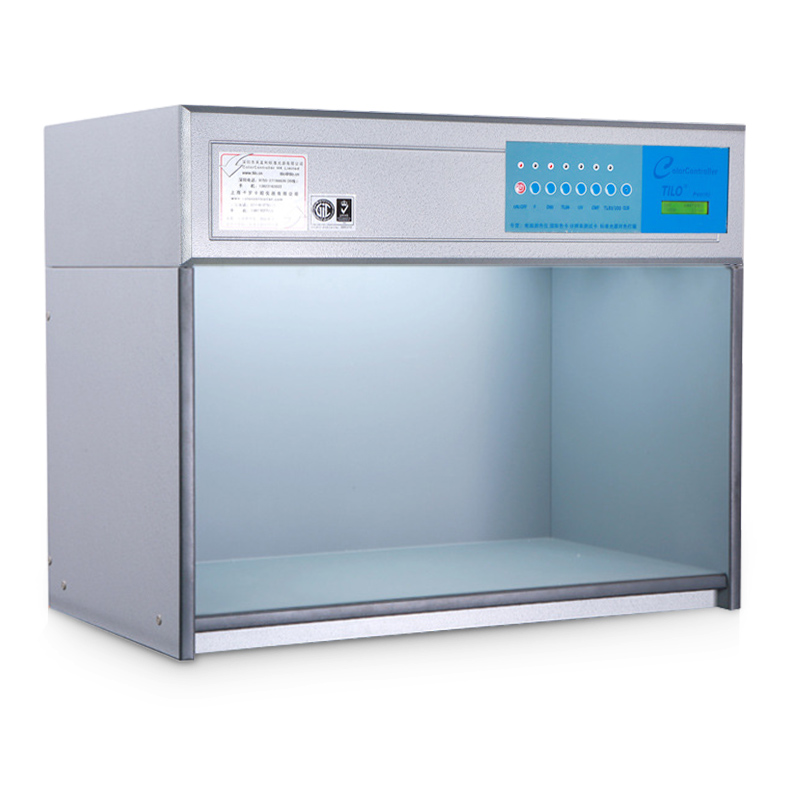

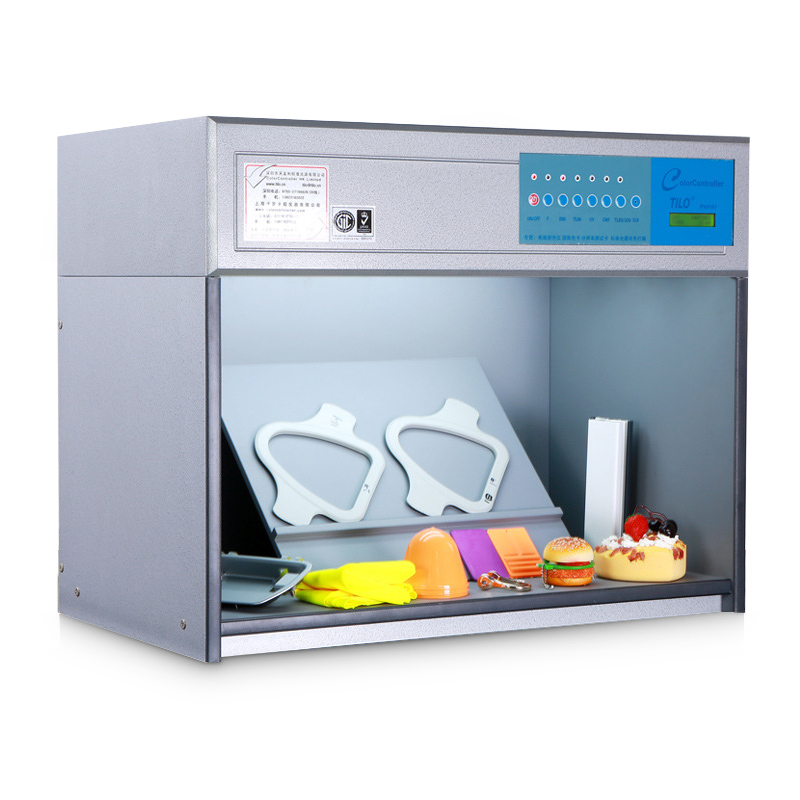

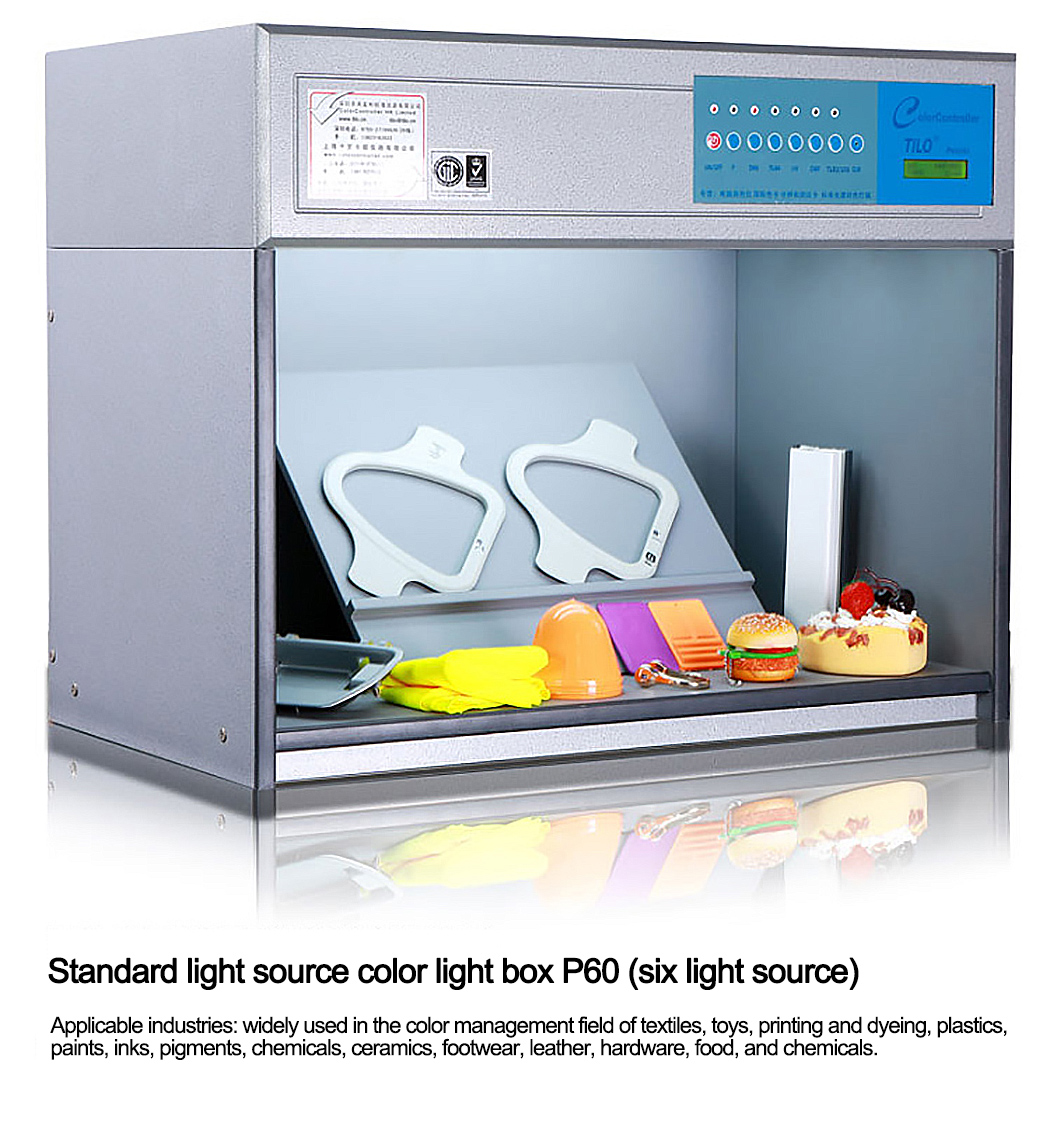

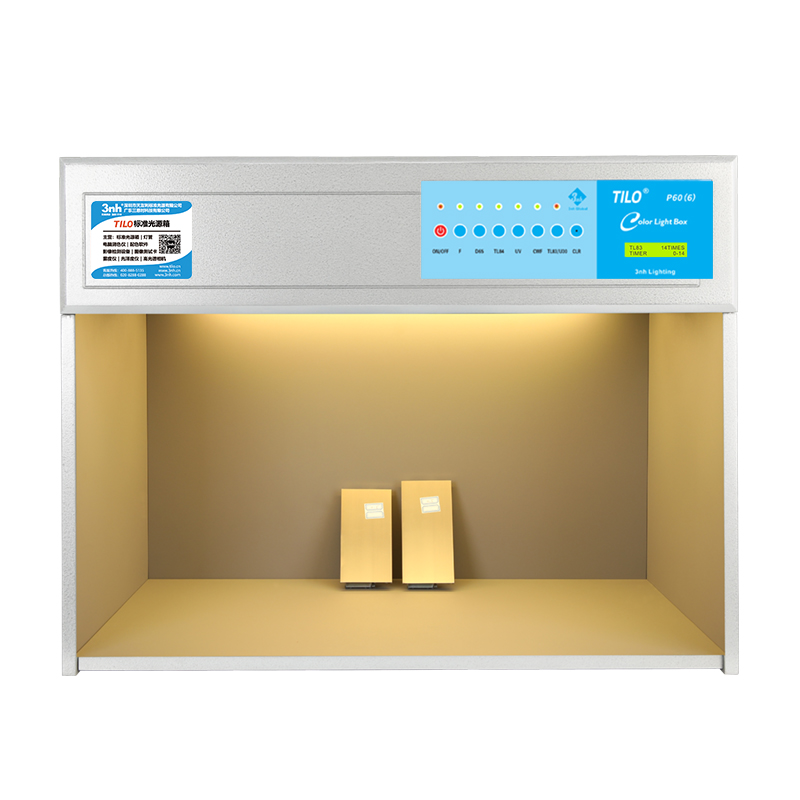

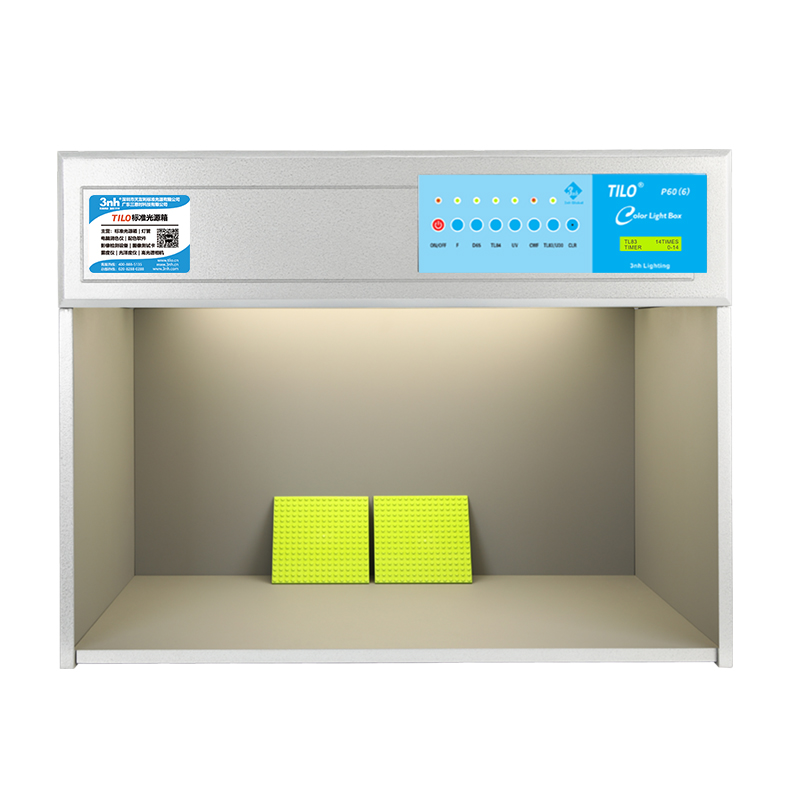

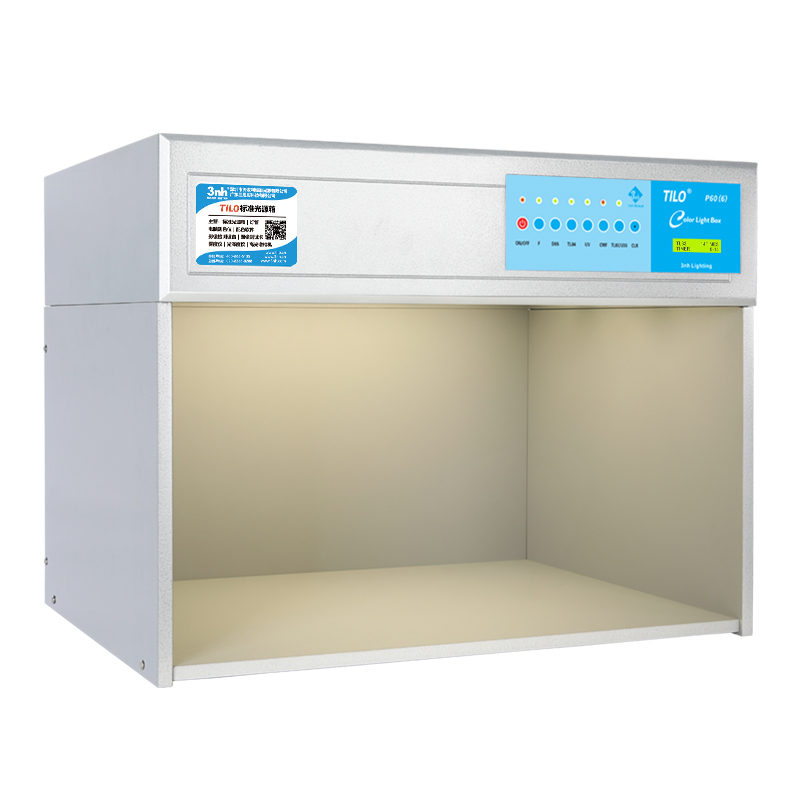

TILO P60(6) color light cabinets is equipped with 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.
TILO P60(6) color matching light cabinets can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Features:
1. TILO Color light cabinets render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83, F, UV), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

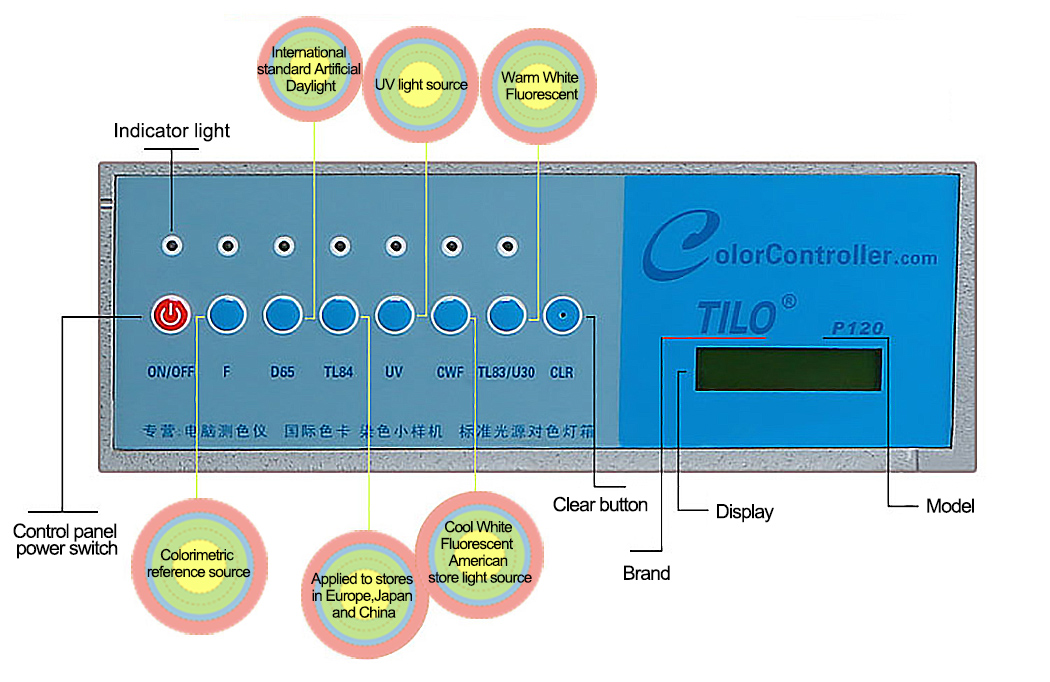

3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. The dimension can be made by customized.
Specifications:
|
Order No. |
Name |
Model |
D65 |
TL84 |
F |
UV |
CWF |
TL83 |
Voltage |
|
10113 |
Standard light source booth |
P60(6) six light source(220V) |
2pcs |
2pcs |
4pcs |
1pcs |
2pcs |
2pcs |
220V/50Hz |
|
10813 |
Standard light source booth |
P60(6) six light source(115V) |
2pcs |
2pcs |
4pcs |
1pcs |
2pcs |
2pcs |
115V/60Hz |
Optional accessories: light source diffuser 45 degree standard stand.

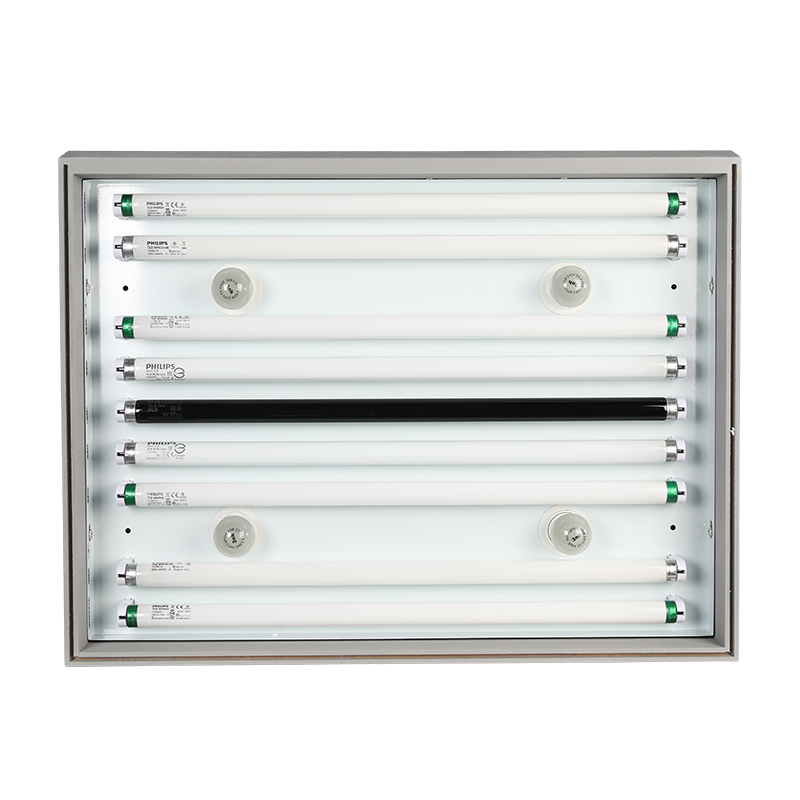

Light Sources:
|
Light Source |
Color viewing booths application |
Color temperature(k) |
Power(W) |
|
D65 |
International standard Artificial Daylight |
6500 |
18 |
|
TL84 |
Applied to stores in EuropeJapan and China |
4000 |
18 |
|
CWF |
(Cool White Fluorescent)American Standard |
4150 |
18 |
|
F/A |
"Sun-setting Light Yellow" incandescent light source(imitation of sunset) |
2700 |
40 |
|
UV |
Viewing under ultraviolet light to detect and evaluate optical brighteners
or fluorescent pigments |
Wavelength:365nm |
20 |
|
TL83 |
Warm White Fluorescent American Standard |
3000 |
18 |
