YE0670 Real Scene Test Chart

YE0670 Real Scene Test Chart

  • Subjectiverealscenetestchartisbasedonpersonalsubjectivefeelings,buildingatestscene,takingphotoswithacamera,andthensubjectivelyjudgingtheperforma....
  • Details

Subjective real scene test chart is based on personal subjective feelings, building a test scene, taking photos with a camera, and then subjectively judging the performance of the camera in all aspects through the photos.

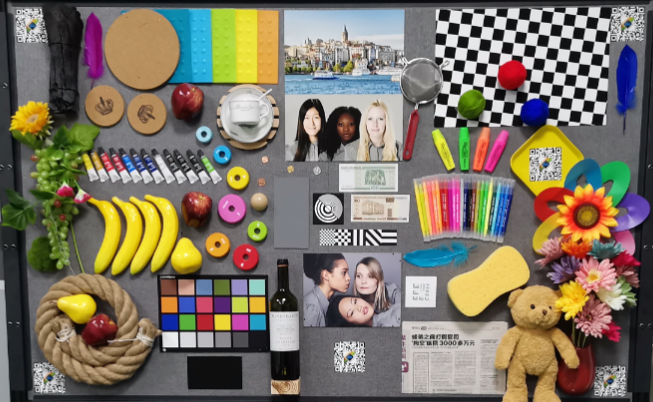

The YE0670 real scene test chart elements include charcoal, feathers, sponge, fabric, yarn, hemp rope, etc., which can be used to analyze the performance of the lens in reproducing the texture of different materials. 24 color cards with rich colors, fruits, flowers, color ratios, and children's toys can be used to analyze the color performance of the lens. Resolution cards, newspapers, QR codes, labels on wine bottles, and more can be used to analyze the resolution capability of the lens.

Description of YE0670 Real Scene Test Chart

图片 1

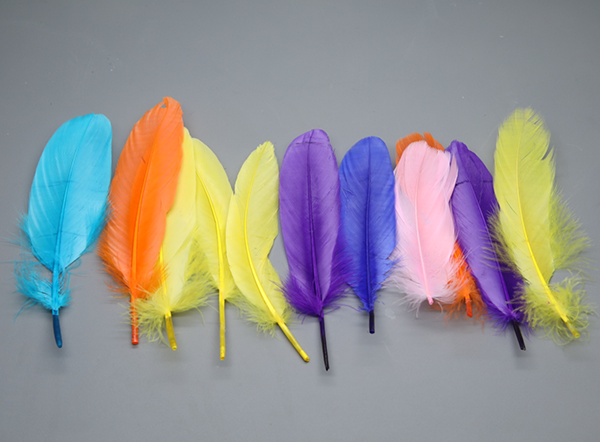

图片 2 Feather testing can better reflect the performance of the lens in terms of gloss, chromaticity, transparency, and texture details

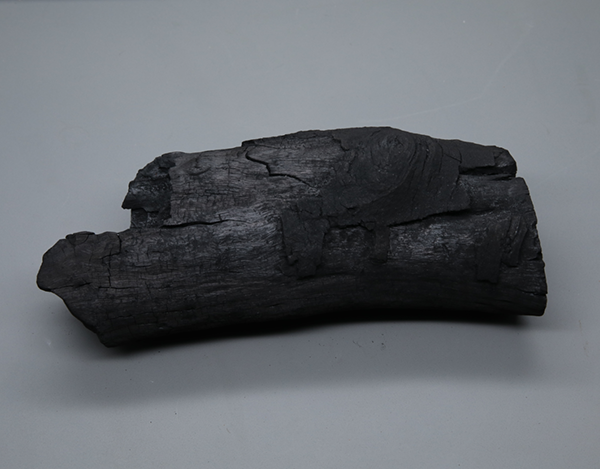

Charcoal is used to analyze the loss of low to medium contrast and details caused by noise reduction or other image processing图片 3

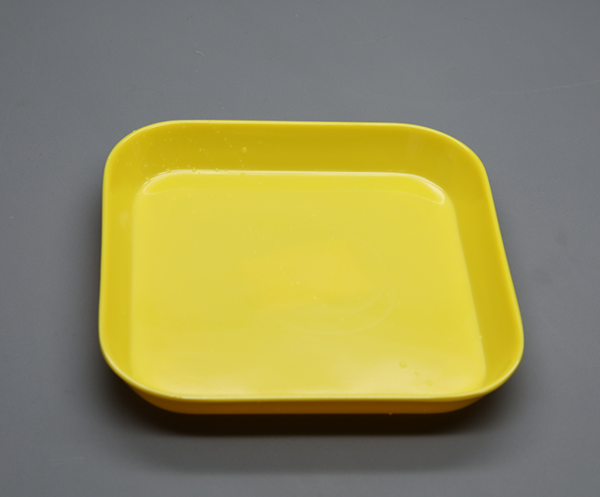

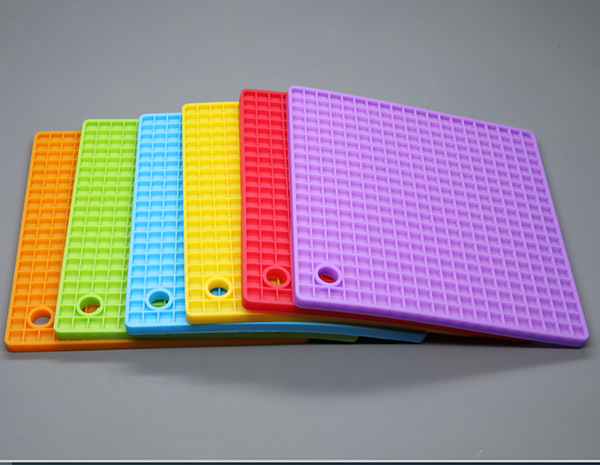

图片 4 Color palette, which can better observe the details and color reproduction of uneven plastic surfaces
Blue sky and sea city scenery, used to observe the details of urban floors, the balance between blue sky and white clouds, and the white balance of the sea图片 5

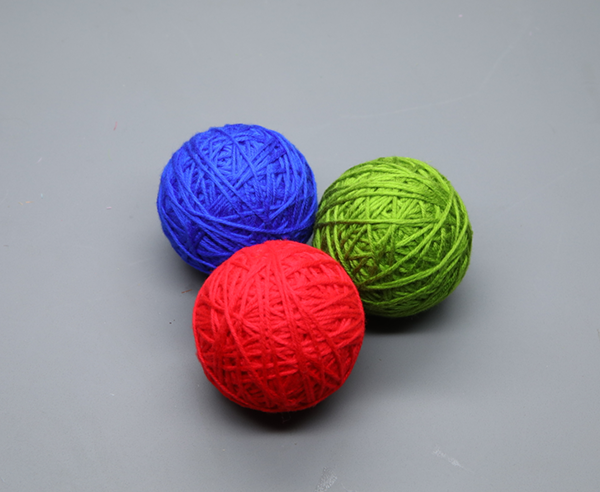

图片 6 The green, red, and blue yarn balls are used to observe the lens' ability to reproduce low contrast details in different colors

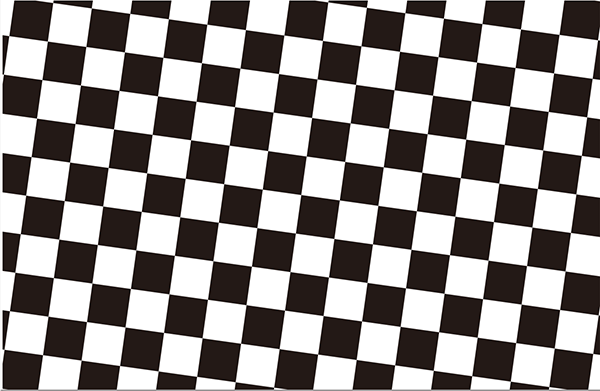

Tilt 8-degree checkerboard test card to detect the MTF value of the lens图片 7

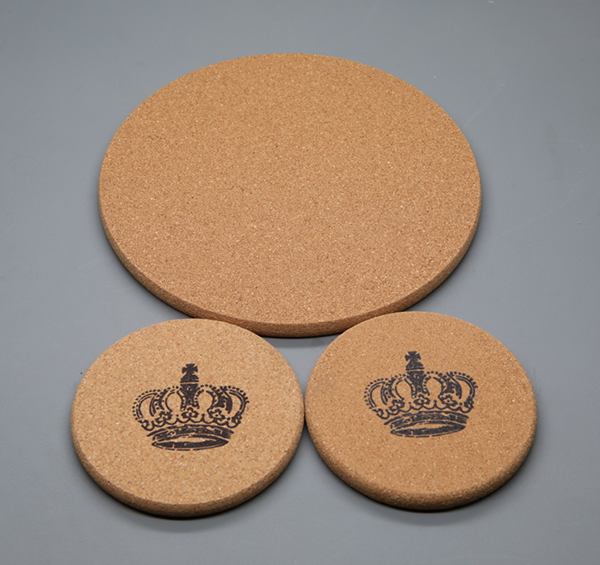

图片 8 Brown round wooden board, used to observe the color expression and detail reproduction of the wooden board by the camera

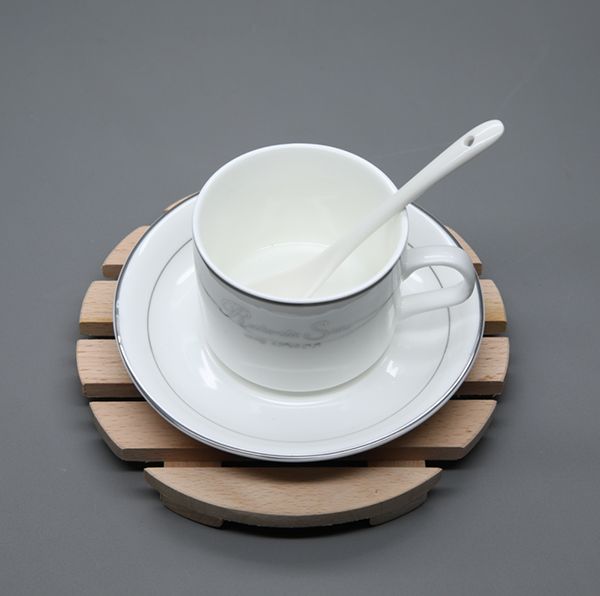

Ceramic cup, used to test the performance of lenses on ceramic texture图片 9
图片 10
 图片 11
Skin tone test card, used to test the restoration of three different skin tones and the detailed expression of portraits

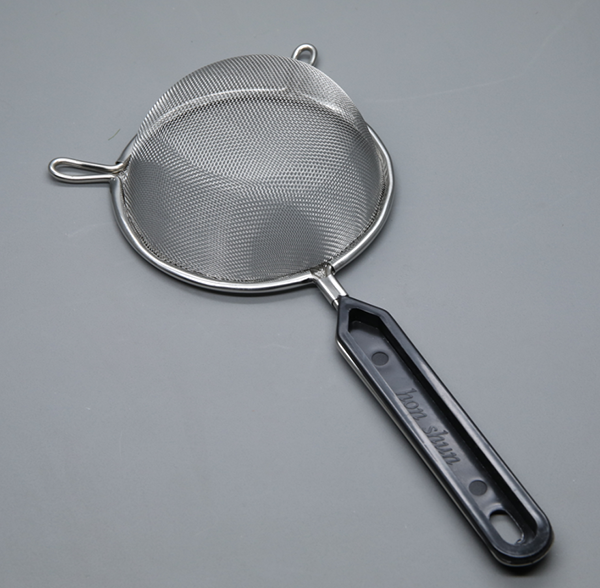

图片 12 Stainless steel filter spoon, used to test the performance of metals and plastics

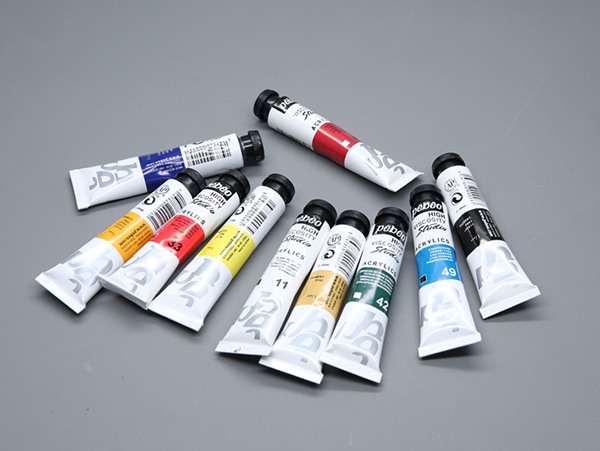

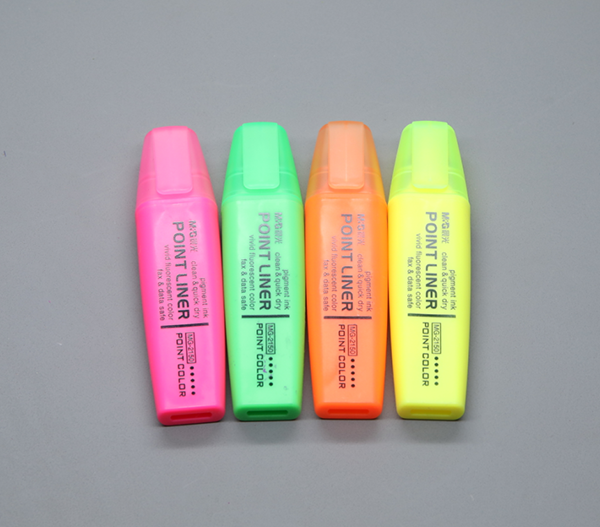

Four different colored dyes are used to test the color reproduction and detail reproduction of plastic shells by the lens图片 13

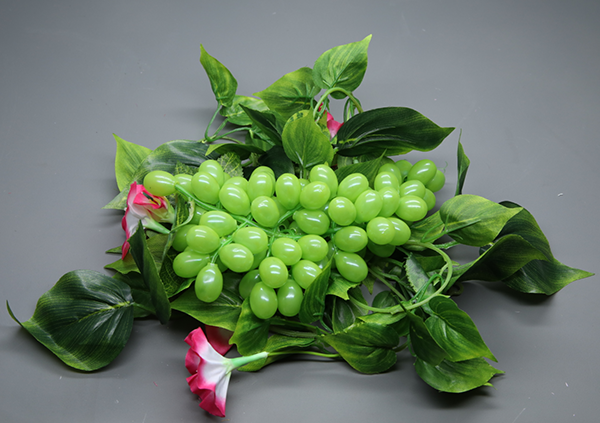

图片 14 Green plants, observing the camera's detailed representation of the flowers and fruits of green plants
A set of multi-color dyes can better observe the color reproduction and text details of the dye shell图片 15

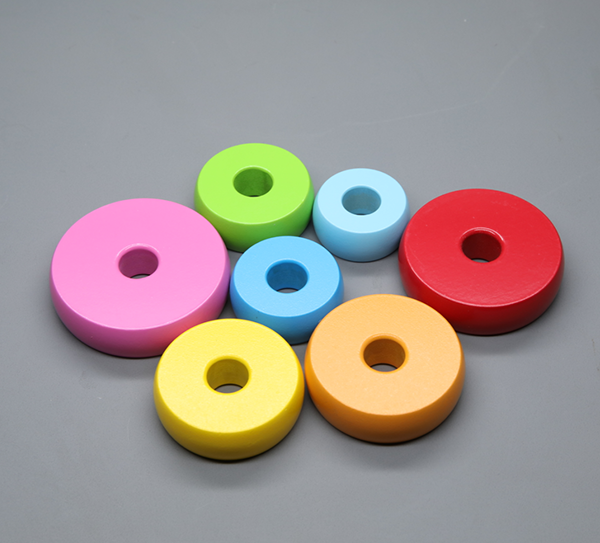

图片 16 Colorful building blocks, used for subjective color reproduction

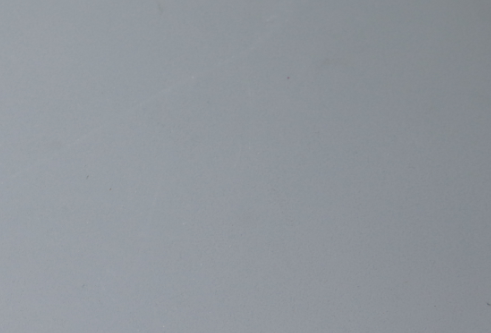

18% gray card, testing the color and brightness uniformity of the lens图片 17
图片 18 Used for framing and focusing of lenses

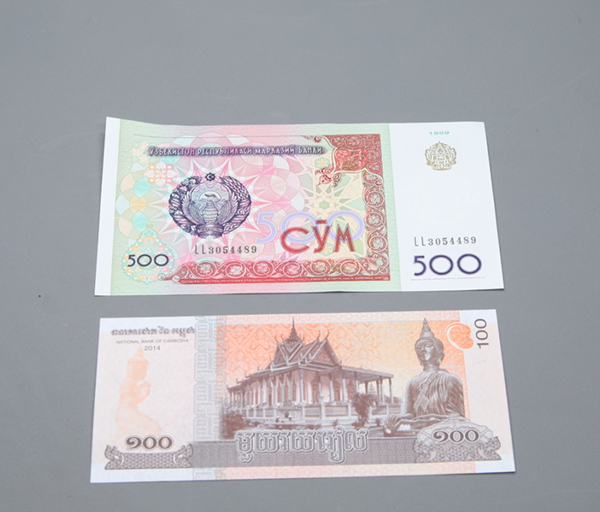

Paper currency, used to assess the clarity and color of surface text图片 19

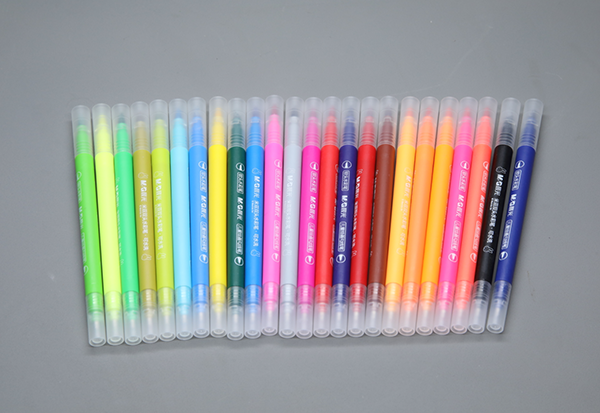

图片 20 A set of colored pencils containing multiple colors. Used to test color performance under light sources
Plastic cover QR code, observe the color reproduction and texture details of solid color plastic and QR code图片 21

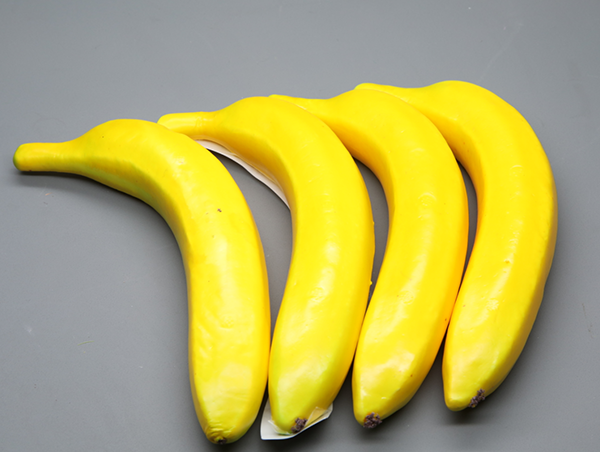

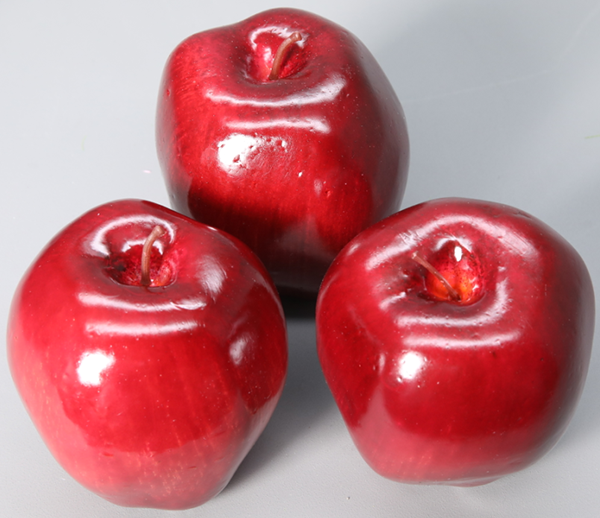

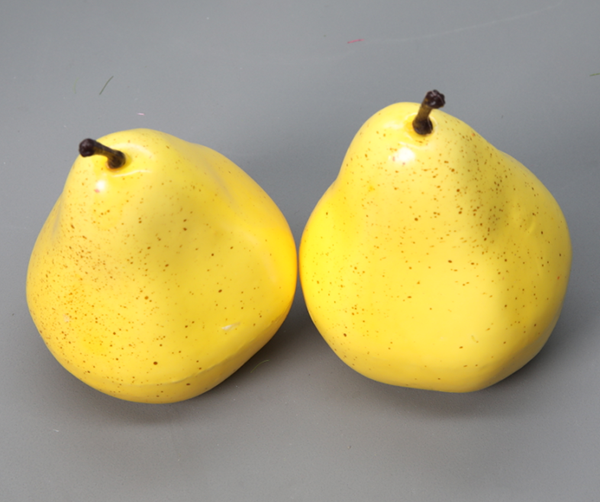

图片 22 Fruits, used to observe the performance of various fruits
 图片 23
图片 24

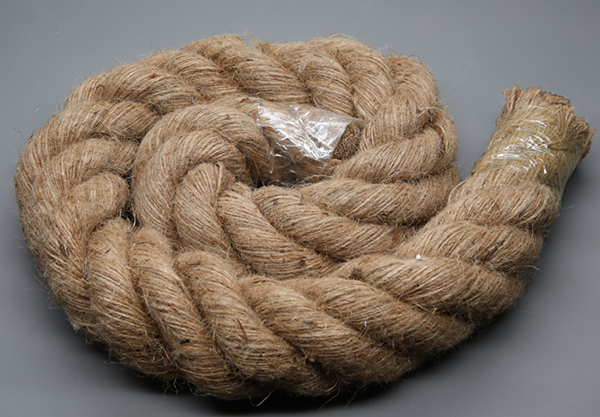

Hemp rope, used to test the detailed performance of hemp rope图片 25

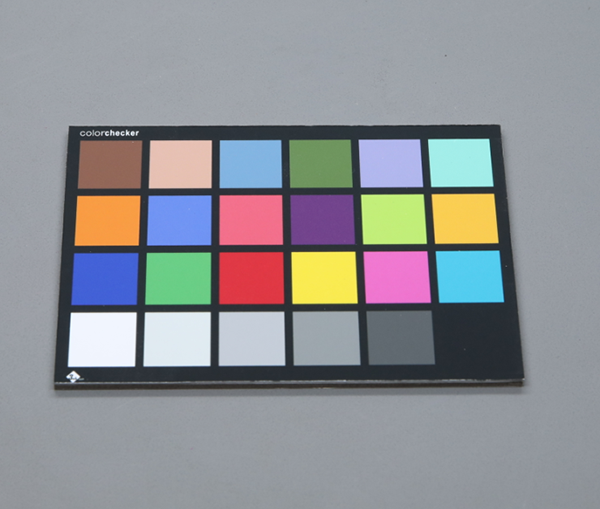

图片 26 24 color cards, containing 24 common colors from nature. Used for testing the color reproduction and color of lenses

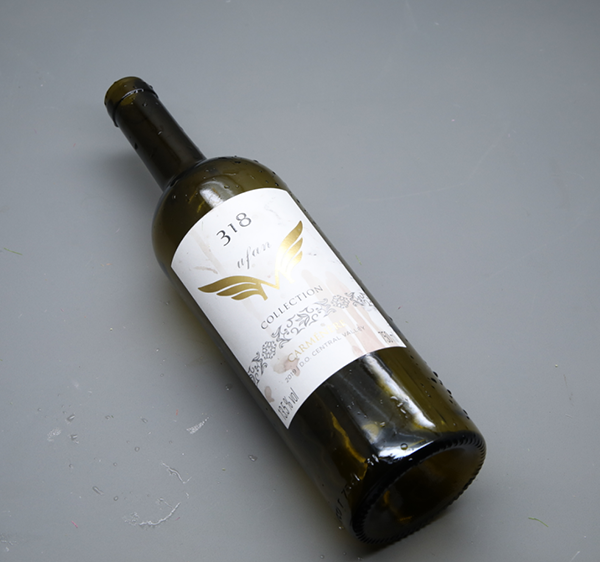

Wine bottle, there are many fine details on the bottle, requiring high resolution for the camera, used to observe the text details on the bottle图片 27

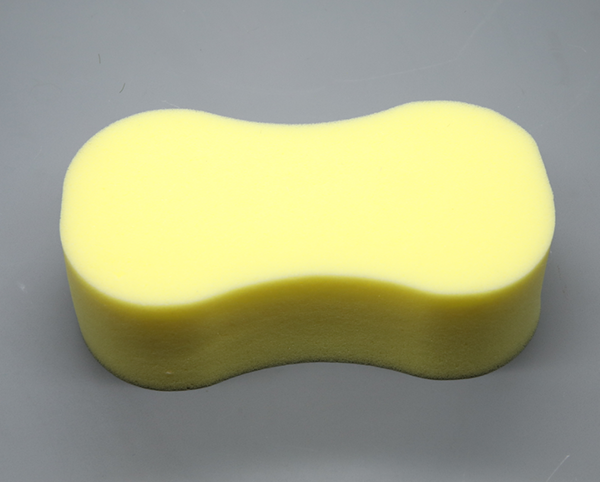

图片 28 Sponge, used to observe the behavior of objects

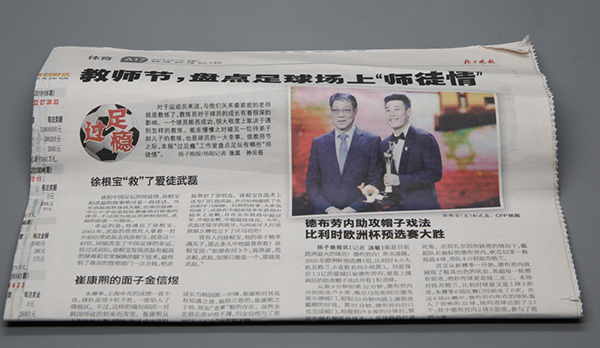

Newspaper, used to read the texture details and colors of surface text图片 29

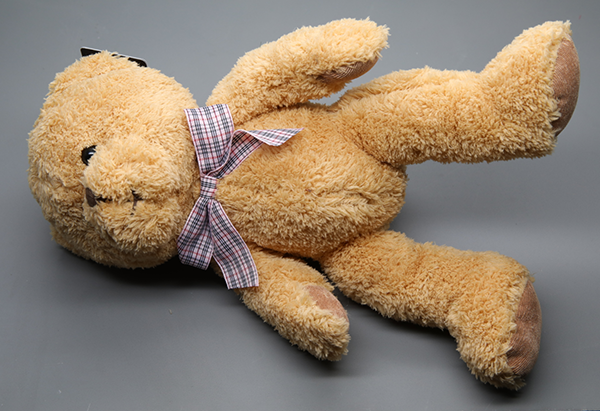

图片 30 Brown plush bears can observe the details of plush

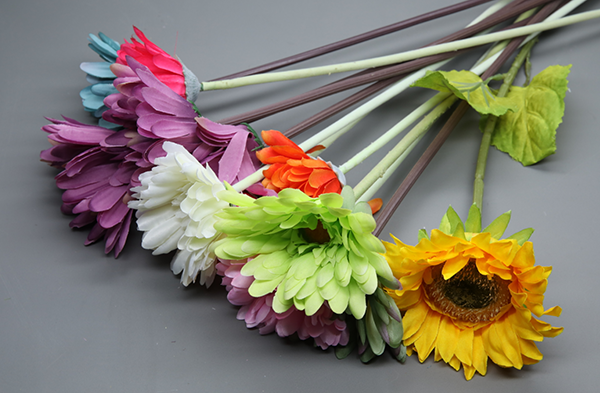

Flowers, used to observe the detailed expression of flowers图片 31图片 31

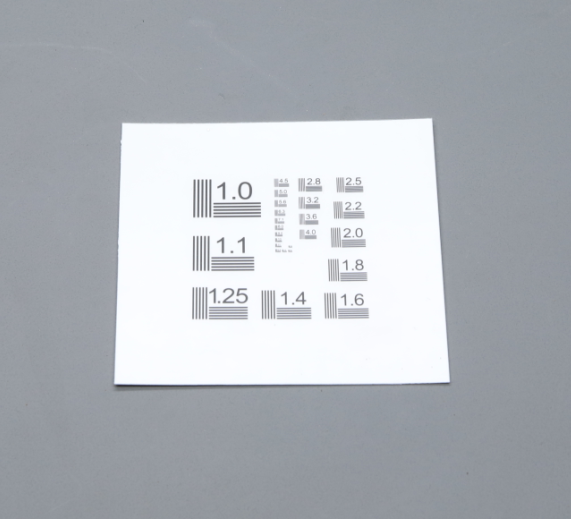

图片 32 Resolution test card, used to test the resolution of the lens

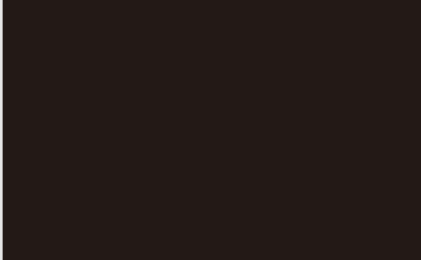

3% reflective black card, used to test the white balance of the lens图片 33
